Computer Motherboard

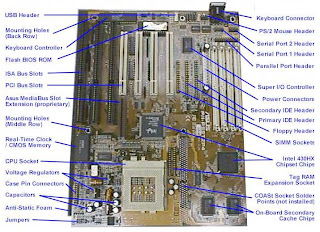

Yes, the motherboard is the mother of all boards on your computer. The motherboard may have a form factor of AT or ATX. We recommend you use ATX motherboards with ATX cases since this is the newer alternative and most modern microprocessors run on ATX motherboards. The motherboard holds the microprocessor, the memory, and several card slots. The memory may be SIMM sockets or DIMM sockets. The current standard is DIMM socketed memory. This is usually 168 pin 3 volt unbuffered synchronous DRAM memory. PC100 or PC133 memory is the current memory of choice. Most boards have 3 or 4 memory slots, which may, depending on the size of DIMM used, allow up or beyond 1 Gb total system memory. Most boards commonly allow 384 to 512 Mb of system RAM.

Other motherboard items

Other items on your motherboard that you should be aware of are the small pin connectors that are used to connect the following controls and indicatory to your motherboard.
  • Power supply switch.
  • Reset switch
  • The power on indicator.
  • Hard drive activity indicator.
  • In the case speaker connector.
